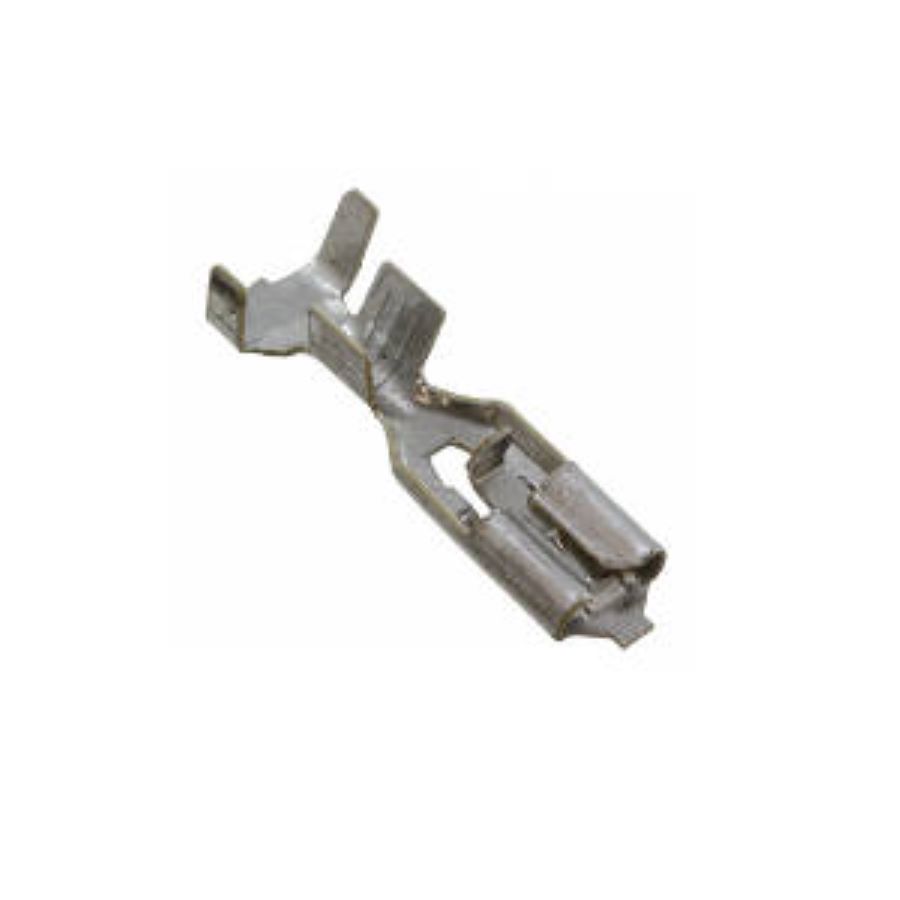

170326-1
Manufacturer:
TE Connectivity
Mfr.Part #:
170326-1
Datasheet:
Description:
Terminals Free Hanging 14 AWG Female
| Parameter | Value |
|---|---|
| Length | 21.6 mm |
| Termination | Receptacle |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 187 |
| Material | Brass |
| Packaging | Reel |
| Depth | 7 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Brass |
| Type | Receptacle |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Female |
| ELV | Compliant |
| Body Material | Brass |
| Tab Width | 4.7498 mm |
| Wire/Cable Diameter | 3.5814 mm |
| Connector Type | Connector, Power |
| Wire/Cable Gauge | 14 AWG |
| Insulation | Non-Insulated |
| Wire/Cable Type | Discrete |
| Wire Gauge (Max) | 14 AWG |
| Wire Gauge (Min) | 18 AWG |
| Plating | Tin |
| Termination Style | Crimp |
| Insulation Diameter | 3.5814 mm |
| Body Plating | Tin |
| Contact Gender | Female |
| Insulated Wire Support | Yes |
| Mating Tab Width | 4.75 mm |
| Tab Length | 5.9944 mm |
| Tab Thickness | 508 µm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Stud Size | 4.75 mm x 0.51 mm |
Stock: 9270
Distributors
pcbx
pcbxUnit Price$0.25136
Ext.Price$0.25136
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.25136 | $0.25136 |
| 10 | $0.12568 | $1.25680 |
| 50 | $0.09668 | $4.83400 |
| 100 | $0.07437 | $7.43700 |
| 500 | $0.05721 | $28.60500 |
| 1000 | $0.04401 | $44.01000 |
| 3000 | $0.03385 | $101.55000 |
| 5000 | $0.03385 | $169.25000 |
| 10000 | $0.03326 | $332.60000 |
| 30000 | $0.02896 | $868.80000 |
| 50000 | $0.02522 | $1261.00000 |
